Price: ₹650 - ₹505.00
(as of Jun 10, 2023 09:00:40 UTC – Details)

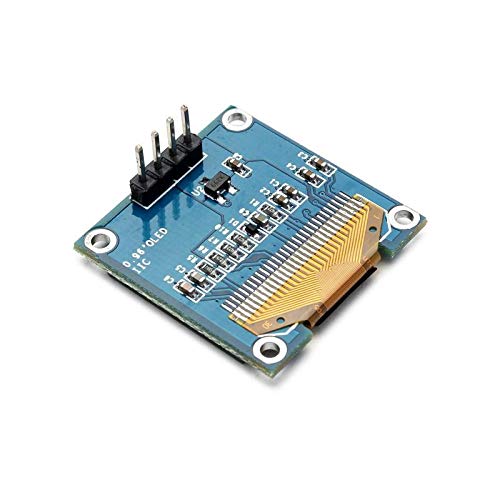

This is a 0.96 inch Blue-Yellow OLED display module. The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128×64. The package includes display board,display, 4 pin male header presoldered to board. OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays. Specifications: Size: 0.96 Resolution: 128X64 Viewing angle: greater than 160 degrees Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips Low power consumption: 0.04W during normal operation Working temperature: -30-80 degrees Volume: 27MM * 27MM * 4.1MM Driver IC: SSD1306 Communication: IIC, only two I / O ports No font: The software takes word modulo Backlight: OLED self light, no backlight Interface: VCC: 3.3-5V GND: Ground SCL: Serial Clock SDA: Serial Data
