Price: ₹599 - ₹325.00
(as of Jun 07, 2023 06:06:41 UTC – Details)

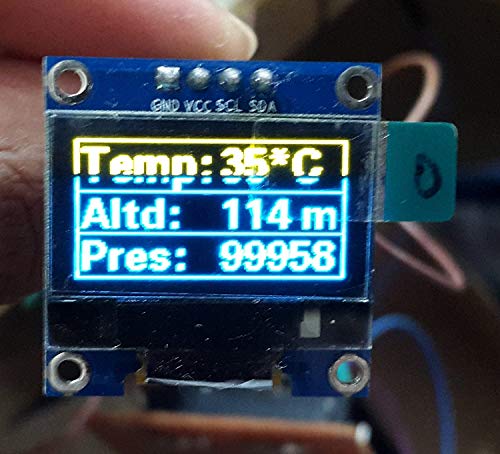

Size: 0.96 Resolution: 128X64 Color: Yellow and Blue Viewing angle: greater than 160 degrees Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC Working temperature: -30-80 degrees Volume: 27MM * 27MM * 4.1MM Driver IC: SSD1306 Communication: IIC, only two I / O ports Backlight: OLED self light, no backlight
Size: 0.96 Resolution: 128X64

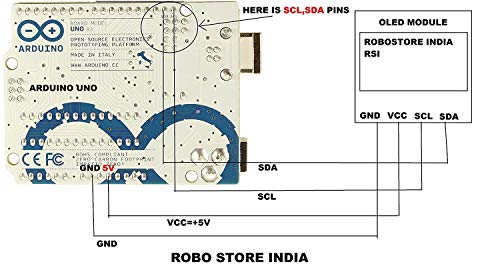

I2C Communication ( only 4 pins )
VCC: 3.3-5V GND: Ground SCL: Serial Clock SDA: Serial Data
