Descriptions:

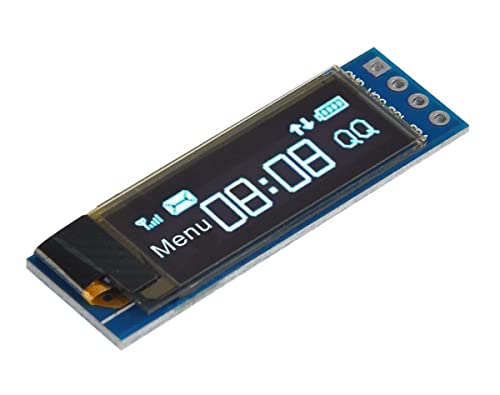

0.91 Inch OLED Module is a mini display screen with 128X32 resoluction and SSD1306 chipset..

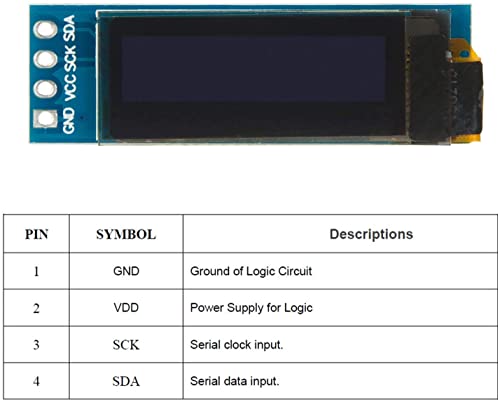

Standard IIC communication interface pinout compatible with most MCU development board such as arduino, Raspberry Pi,C51 series etc.
The Python library to use SSD1306-based 128×64 or 128×32 pixel OLED displays with a Raspberry Pi or Beaglebone Black too.
Features:
Easy to setup
Power Input: 3.3V
Good compatibility: Raspberry Pi 4B/3B+/3B/2B/Zero, Beagle Bone Black and so on
Support IIC communication Protocol
Super Mini size
Resolution: 128×32 pixels
Display Specifications:
Display Mode: Passive Matrix
Display Color: Monochrome (Blue)
Drive Duty: 1/32 Duty
Mechanical
Specifications:

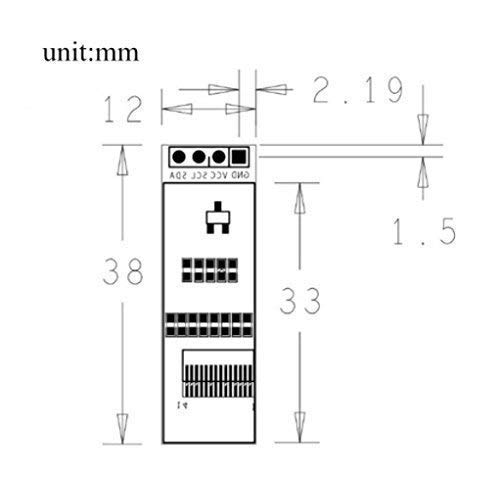

Outline Drawing: According to the annexed outline drawing
Number of Pixels: 128 × 32
Panel Size: 30.0 × 11.5 × 1.2 (mm)
Active Area: 22.384 × 5.584 (mm)
Pixel Pitch: 0.175 × 0.175 (mm)
Pixel Size: 0.159 × 0.159 (mm)
Weight: TBD
Driver: SSD1306
Resolution: 128×32
Display color: White
Operating voltage: 3.3V / 5V
